Start with a documented source and load list, then compare the 400A distribution rack, Edison distributor box, and two 50-foot feeder cables. Confirm voltage, phase, current, connectors, cable distance, placement, venue requirements, and the responsible qualified person before selecting equipment.
Showing 1–4 of 4 power distribution catalog options
Rentals from $20.00 / 24 hoursIdeal for events needing robust power distribution. Compact with multiple output options.
50 FOOT 14-30R MALE TO FEMALE
Efficiently manage power distribution at your event with our Distro Power Distributor Box. Ideal for high-load electrical applications, with robust and user-friendly design.
The Industrial Pin & Sleeve Feeder Cable - 50' is your reliable partner for powering large scale sound systems. It's robust, handles high wattage, and boasts a length of 50 feet.
Build beyond sound with equipment and production services coordinated by the same local team.

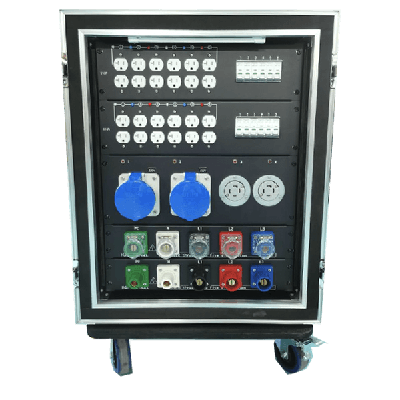

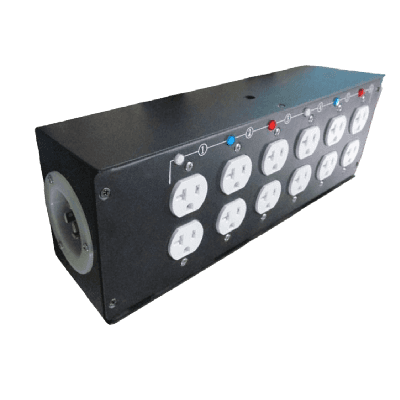

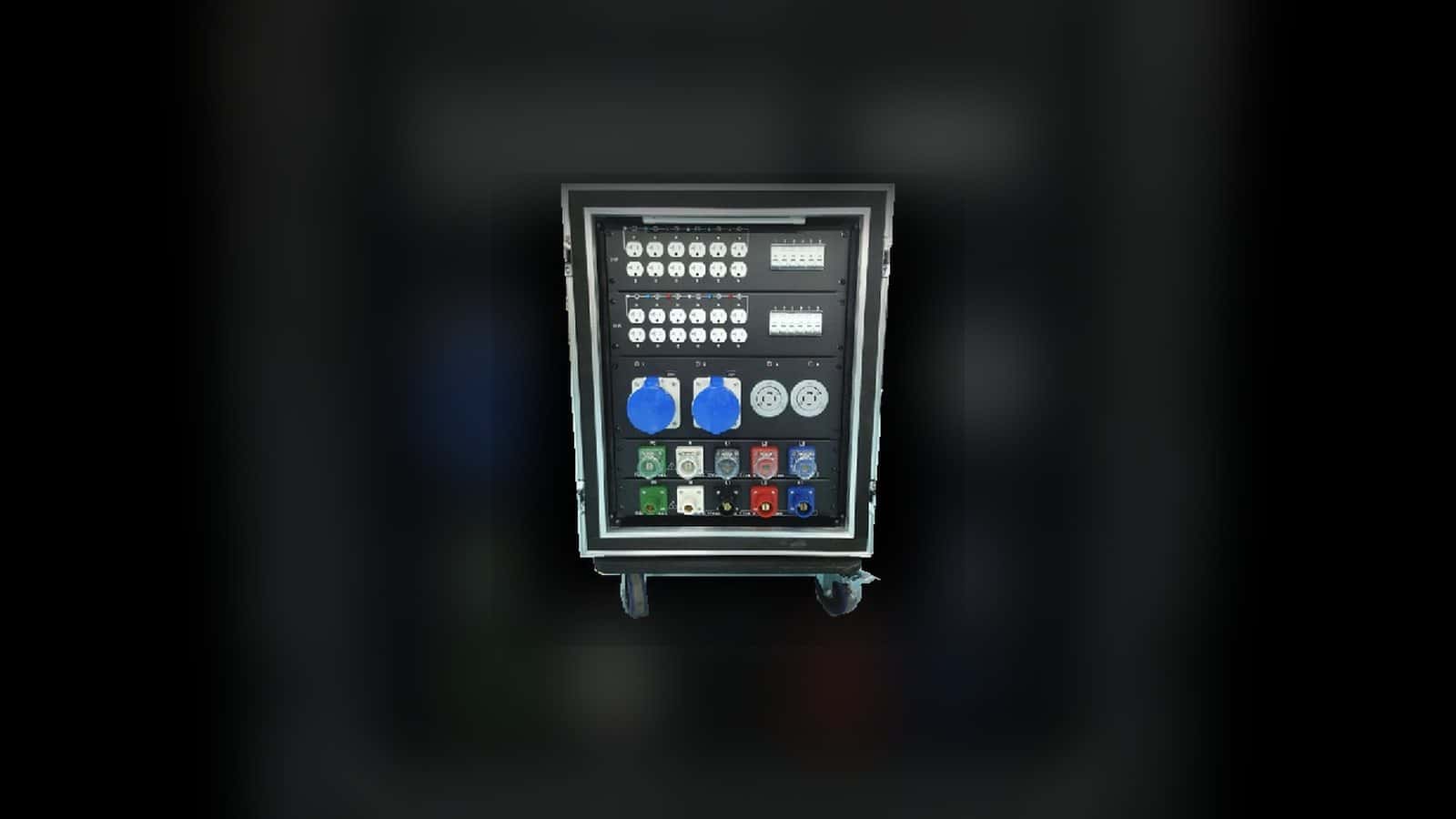

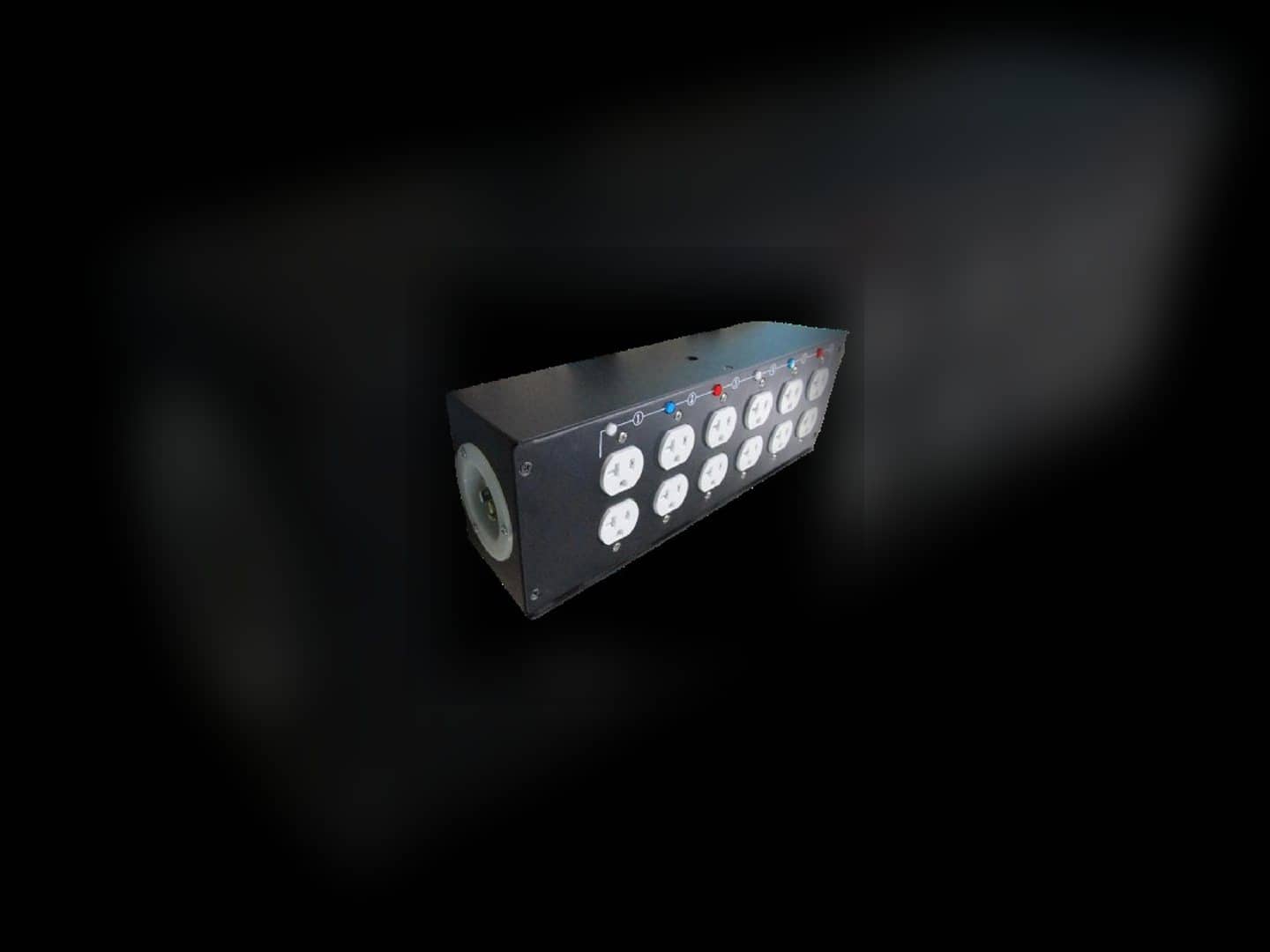

The Power Distributor Box pictured is listed with six Edison duplex outlets and a 36-amp rating. The separate 400A rack lists cam-lock input and output plus Edison duplex, pin-and-sleeve, and L14-30 outputs. Those are two different distribution records; neither image establishes the upstream supply, usable capacity for a particular site, branch protection, adapters, or the loads that can be connected together.
Prepare an equipment-by-equipment load schedule and record the required voltage, phase, current, connector, and operating location. Have the venue requirements and the complete path reviewed by the responsible qualified person before ordering or energizing equipment. A checkout field that permits pickup is not evidence that a high-current system is appropriate for self-design or self-connection.
List each connected device with its documented electrical requirement instead of estimating from product type.
Record the upstream source and every required output connector, voltage, phase, and current.
Confirm venue rules and who is qualified and authorized to review, connect, protect, and operate the system.

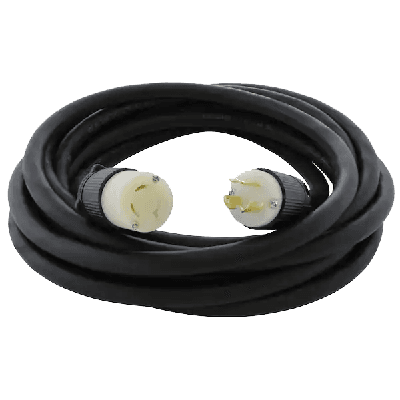

The selected 14-30R cable is listed as a 50-foot male-to-female extension with a 30-amp maximum. A separate 50-foot industrial pin-and-sleeve feeder is described as a three-pin, 63-amp, 220-volt cable. Keep those records distinct: connector appearance, length, or category placement does not establish voltage, phase, current, pinout, source, load, outdoor suitability, or adapter compatibility.
Measure the actual route and include every transition, strain point, crossing, and protected placement in the review. Only the 14-30R cable is marked outdoor-rated in the current four-product inventory; the rack, distributor box, and industrial feeder are not. Choose ordinary production cables, cable protection, generators, and connected equipment separately unless the written order explicitly includes them.
Verify both cable ends and the documented voltage, phase, current, and pin configuration against the real source and destination.
Include vertical travel, turns, transitions, crossings, and equipment placement rather than using straight-line distance.
Keep outdoor status and protected routing tied to the exact cable and site instead of the category name.
Practical guidance about source and load documentation, rack and box differences, feeder compatibility, pickup, outdoor fields, and system boundaries.
The current catalog contains a 400A Power Distribution Rack, a Power Distributor Box, a 50-foot 14-30R extension cable, and a 50-foot industrial pin-and-sleeve feeder cable. Review the live records because their connectors and ratings differ.
Do not assume so. Generators, utility connections, branch cables, adapters, cable protection, connected equipment, permits, installation, and monitoring are separate unless the written order explicitly includes them.
Begin with the documented upstream source and a load schedule for every connected device. Compare the exact input and output connectors, voltage, phase, current, protection, placement, and venue requirements with the responsible qualified person.
No interchangeability is documented. One listing is a 14-30R male-to-female cable with a stated 30-amp maximum; the other is a three-pin industrial pin-and-sleeve cable described at 63 amps and 220 volts. Verify every electrical and connector detail.
All four current records are marked for pickup, but only the 14-30R cable is marked outdoor-rated. Pickup eligibility does not establish authorization or qualification to design, connect, or energize the system.
Provide the source, voltage, phase, available current, connector, every load and its requirement, cable distances, route conditions, indoor or outdoor placement, venue rules, dates, and the person responsible for the electrical plan.
